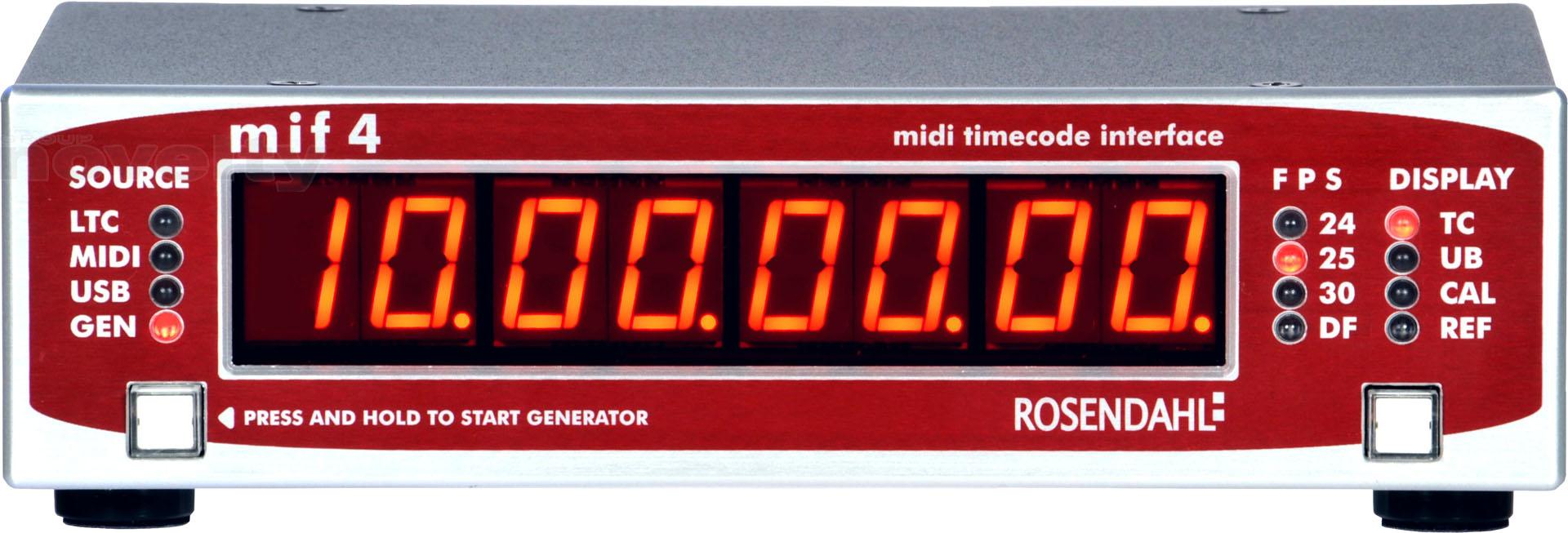

ROSENDAHL mif 4

Interface MIDI Timecode, ports XLR / USB / DIN / BNC

Descriptions détaillées

  • Entrée de référence VideoSync en BNC
  • Interface USB et Midi
  • Entrée sortie LTC symétrique XLR
  • Supporte les sources de MTC thomann instable
  • Conversion de 24, 25, 30 to 24, 25, 30 images / sec
Specifications

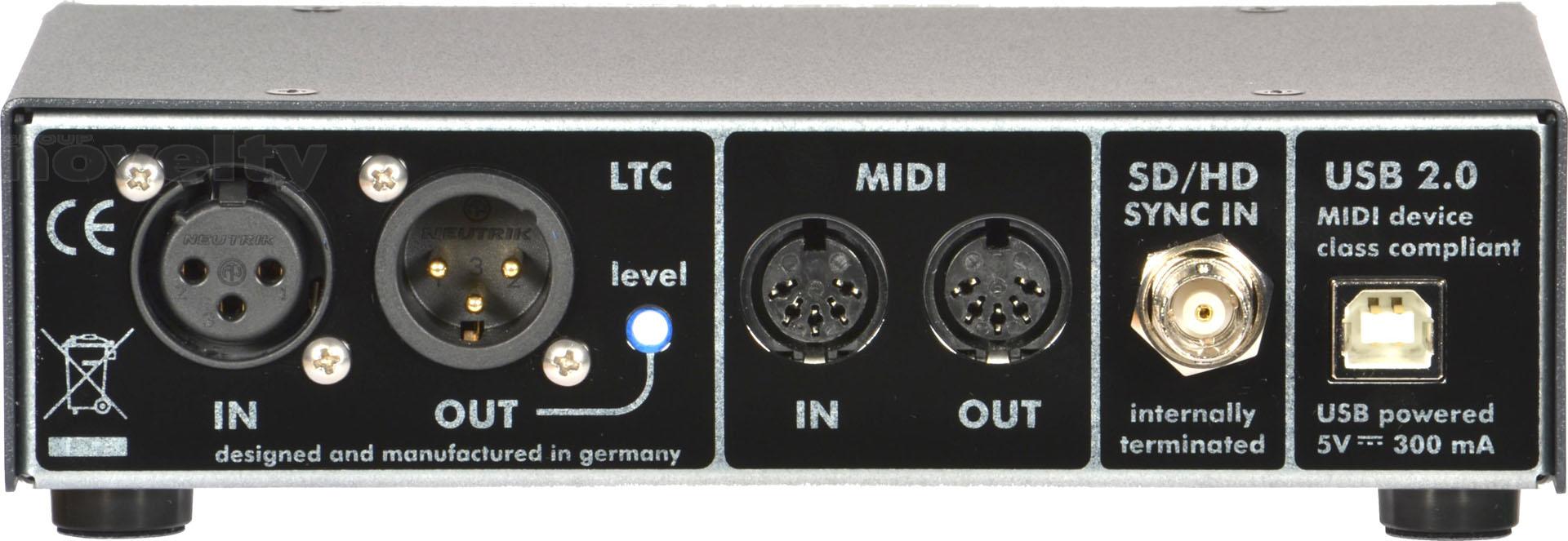

  • LTC input
    • XLR 3-pin female, balanced, pin 1 = GND, 2 = (+), 3 = (-), 10 k?, reads forward, reverse and stationary timecode at 5 to 500% of nominal speed (SMPTE 12M).
    • input level tolerance -30 to +20dBu.
  • LTC output
    • XLR 3-pin male, balanced, pin 1 = GND, 2 = (+), 3 = (-).
    • source 1 k?, short circuit proof.
    • outputs nominal forward and stationary timecode (SMPTE 12M).
    • output level adjustable from 0.. +8dBu (5.5Vpp).
  • MIDI input
    • 5-pin DIN connector, MIDI specification 1.0.
    • MTC quarter frames, MTC full message (time and userbits),
    • MMC stop, play, defplay, locate, write userbits (field 47)
    • Rosendahl Sysex.
  • MIDI output
    • 5-pin DIN connector, MIDI specification 1.0.
    • MTC quarter frames, MTC full message,
    • Rosendahl Sysex.
  • USB
    • USB type B, device class compliant MIDI (USB audio).
    • plug & play with Windows XP or later, MAC OSX.
    • MTC quarter frames, MTC full message (time and userbits),
    • MMC stop, play, defplay, locate, write usebits (field 47).
    • Rosendahl Sysex.
  • Sync input
    • BNC, internally terminated, 300mV sync, +/- 300mV tri-level.
    • auto detection of the following video standards :
      • 576i47.95, 576i48, 576i50(PAL), 480i59.94(NTSC), 480i60,
      • 720p50, 720p59,94, 720p60,
      • 1080i47.95, 1080i48, 1080i50, 1080i59.94, 1080i60,
      • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
      • 1080p50, 1080p59.94, 1080p60.
  • Power
    • USB bus powered, 5V DC, < 300mA via host computer or stand alone operation with separate external power adapter.
Informations
Propriétés techniques
  • Consommation électrique : 10 W
  • Dimensions en flight-case (X1) : … x … x … cm
  • Dimensions unitaires : 168 x 110 x 44 mm
  • Poids en flight-case (X1) : … kg
  • Poids unitaire : 0,6 kg
